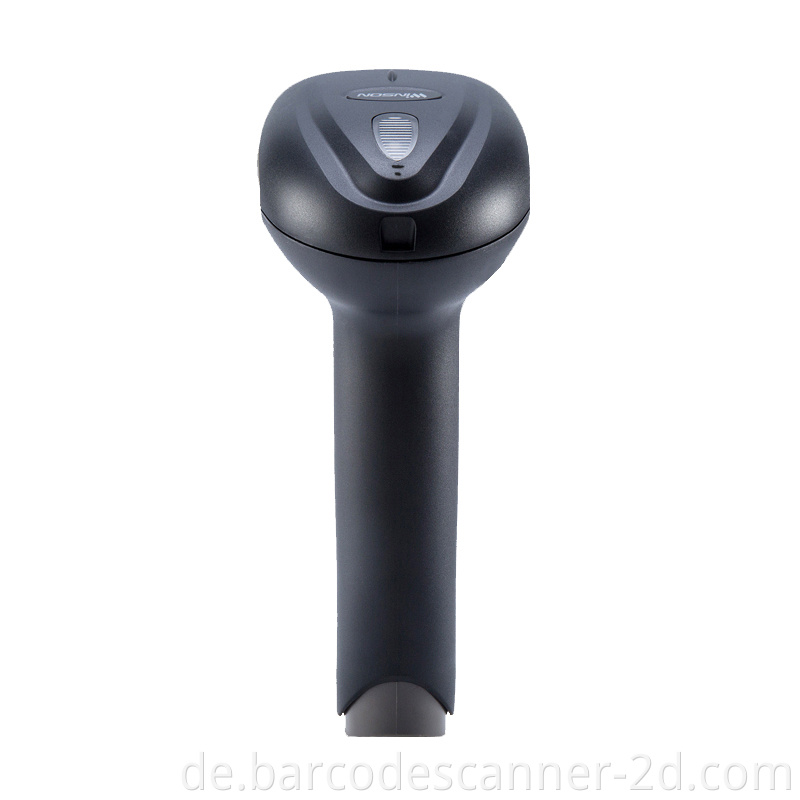

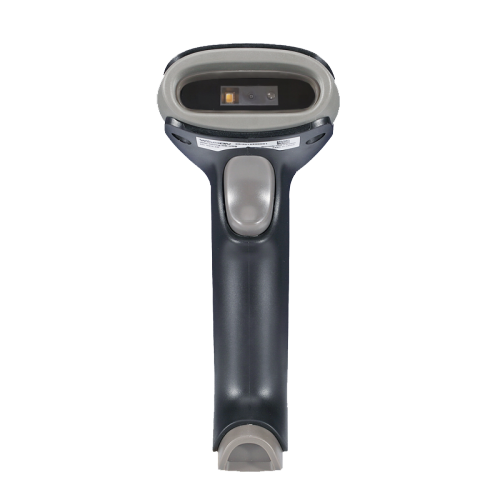

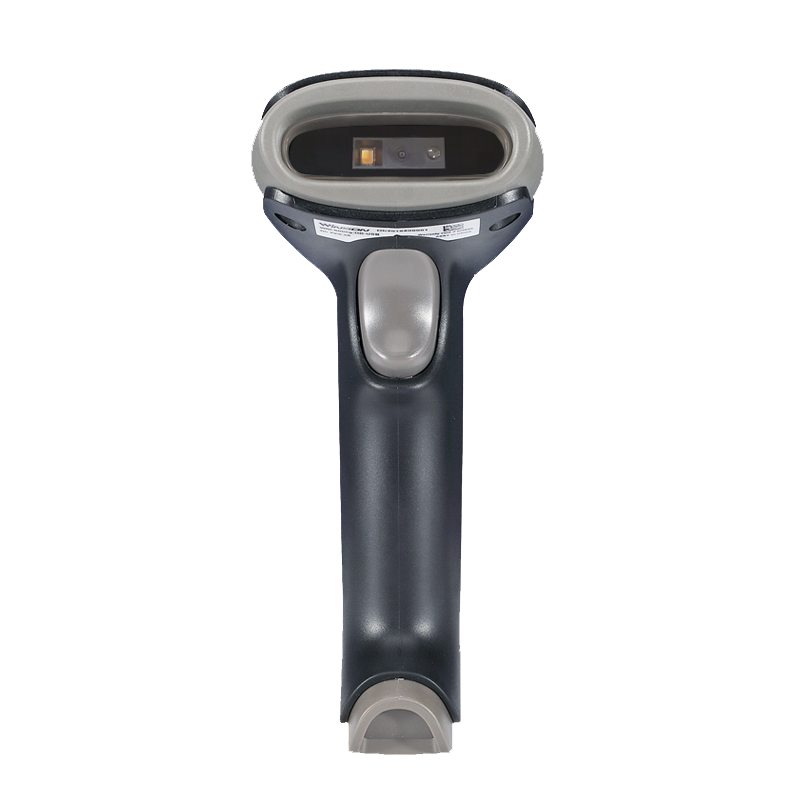

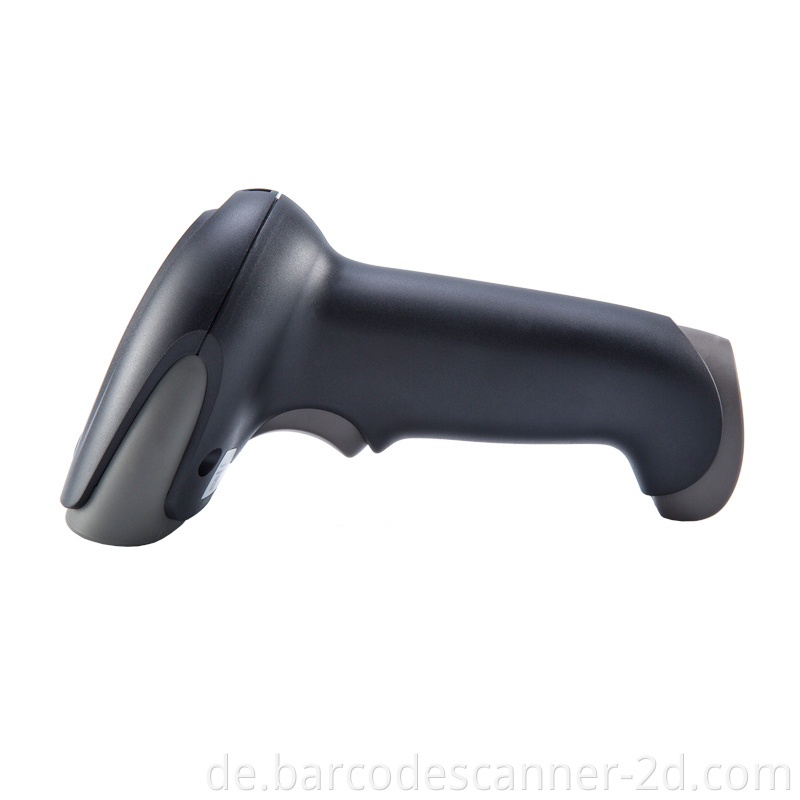

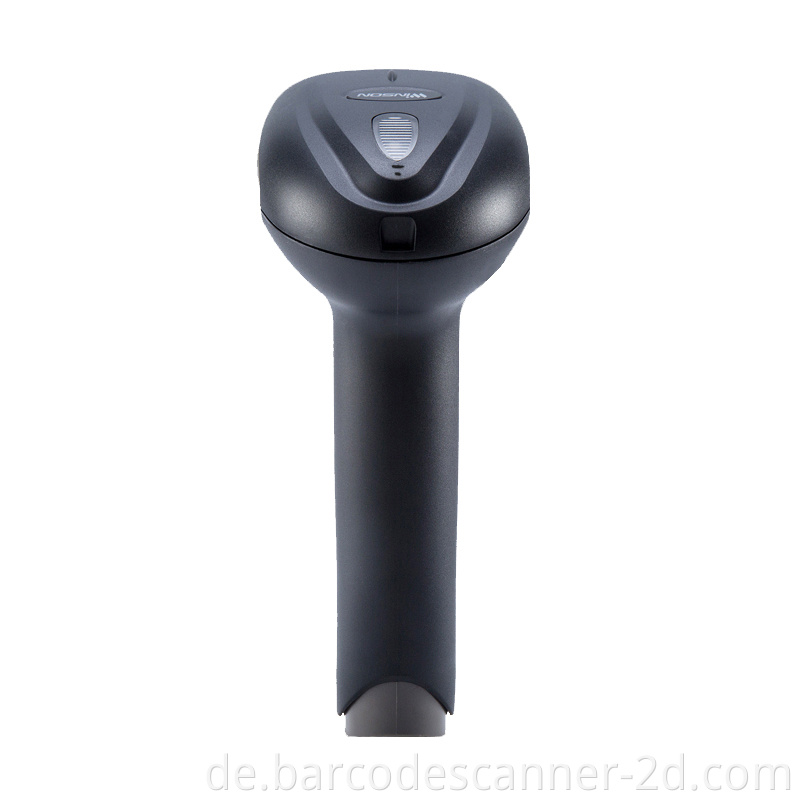

Winson 2d CMOS Codabar Barcode Reader

Technical Specifications

Electrical Characteristics

Interface Supported

USB HID KEYBOARD/USB VCP or RS-232

Input Voltage

DC 5V±10%

Current

<500mA

Optical Characteristics

Image Sensor

CMOS Array Sensor

Sensor Resolution

640X480 Pixels

Light Source

White LED

Aim Light Source

625nm Red Bar LED

Performance Characteristics

Scanning Angle

Pitch angle:±50°;

Skew angle:±50°;

Tilt angle:±180°

Field of View

45°(H),34°(V)

Min Resolution

≥3mil

Min .PCS value

30% UPC/EAN 13(13mil)

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D : Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand so on.

2D: QR ,PDF417 ,Data Matrix

Physical Characteristics

Dimensions

90mm*67mm*168mm(L*W*H)

Weight

120g

Indicator

Beeper, LED

Environmental Characteristics

Temperature

-0°-40°C (operation)

-10°-50°C (storage)

Humidity

5 - 90% (operation) )

5 - 90% (storage)

Ambient Light:

Up to 80,000 lx

Shock Drop Test

1.2m drop onto concrete surface

Decoding Depth of Field

Symbology

Resolution

Nearest

Farthest

EAN13

13mil

55mm

300mm

QR CODE

15mil

35mm

190mm
