Winson WNC-5060G Handheld Barcode Scanner
$181-49 Others
$1650-199 Others
$12≥200Others
Zahlungsart: | L/C,T/T,D/P,D/A,Paypal,Others |
Incoterm: | FOB,CIF,EXW,DDP |
Transport: | Ocean,Land,Air,Express,Others |
Hafen: | guangzhou |
$181-49 Others
$1650-199 Others
$12≥200Others
Zahlungsart: | L/C,T/T,D/P,D/A,Paypal,Others |
Incoterm: | FOB,CIF,EXW,DDP |
Transport: | Ocean,Land,Air,Express,Others |
Hafen: | guangzhou |
Modell: WNC-5060g
Marke: Winson
Zertifizierung: ce, andere
Produktstatus: Lager
Arten Von: Barcodelesegerät
Scanelementtyp: CCD
Farbpunkt: 32 Bit
Oberflächentyp: USB
Herkunftsort: China
Garantiezeit (Jahre): 1 Jahr
Kundendienst: Call Center und technischer Online-Support
Products Status: Stock
Type: CCD Barcode Scanner
Scan Element Type: Ccd
Colour Depth: 32 Bit
Interface Type: usb, COM, PS/2
Max Paper Size: N/A
Optical Resolution: 13mil
Scan Speed: 350 scans/second
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Product Name: WNC-5060g CCD Barcode Scanner
Interface: USB HID KEYBOARD/USB VCP/RS-232
Light Source: 632nm red LED
Photo Sensor: CCD linear sensor
Sensor Resolution: 1500pix
Voltage Requirement: DC 5V+-10%
Min .PCS Value: >30%UPC/EAN 13(13mil)
Mechanical Shock: 1.5m drop onto concrete surface
Scan Rate: 350+-50 (scans/second)
Zertifizierung: Ce, Rohs
Verkaufseinheiten | : | unit |
Pakettyp | : | Brown Box Packing oder Customized Packing (ausgehandelt) 1pcs/Box, 20/50pcs/Karton |
The file is encrypted. Please fill in the following information to continue accessing it

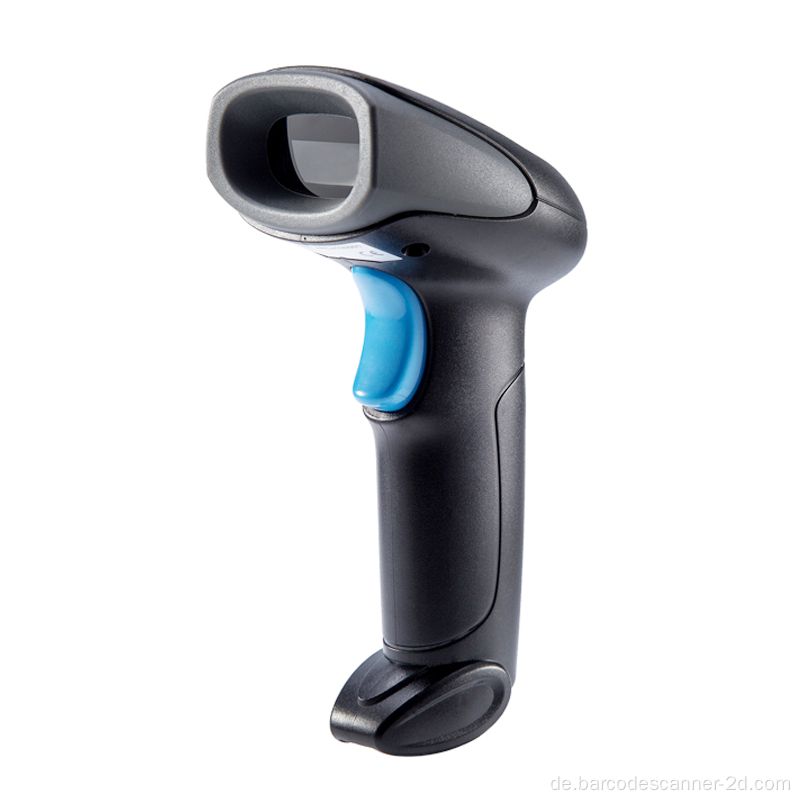

WNC-5060G Kabel-Handheld-CCD-Linear-CCD-Barcode-Scanner
Mit dem Mini -USB -Empfänger, dem Plug & Play, ergonomischem Design, bequem das QR -Code -Scannermodul bequem.
BARCODE -Scannerkabelunterstützung zum Einlegen von Präfix oder Suffix vor oder nach gescannten Daten, Ein-/ Aus -Summer, Identitäts -Barcode -Typ, Tastaturtasten (Registerkarte CR & LF usw.) hinzufügen
2 Farben Optional: Schwarz+Blau oder Schwarz+Orange

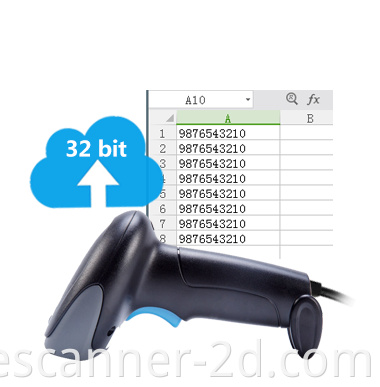

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second.
Support customized functions |
![]() |
![]() |
|
![]() |
|
Plug and play
(for USB HID KEYBOARD, USB VCP,RS-232).
|

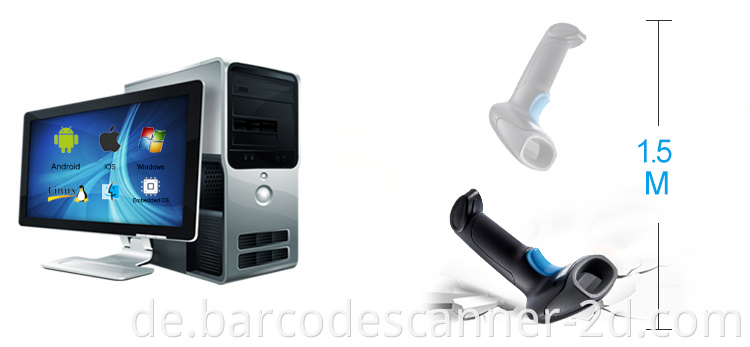

Mechanical shock After 1.5m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
Technical Parameters |
|
Electrical Characteristics |
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP |
Voltage requirement |
DC5V±10% |
Current consumption |
Max :115mA |
Optical Characteristics |
|
Photo sensor |
CCD linear sensor |
Sensor resolution |
1500Pix |
Light source |
632nm Red LED |
Performance Characteristics |
|
Scan rate: |
350±50 (scans/second) |
Decode angle |
Pitch angle:±30° Skew angle:±60° Tilt angle:±30° |
Min resolution |
0.127mm/5mil(PCS 0.9) |
Min.PCS value |
>30%UPC/EAN 13(13mil) |
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm, PCS=0.9) |
Language |
Multiple languages |
Error rate |
1/500W |
Identification |

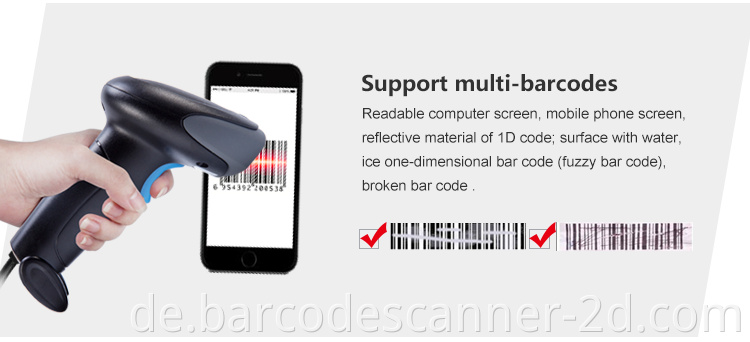

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39, CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5, |
CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Physical Characteristics |
|
Dimensions |
97mm×67mm×165mm(L x W x H) |
Weight |
170g |
Environmental Characteristics |
|
Temp |
-20°to 65°C ( -4°F to 149°F )(operation) -30°to 70°C (-22°F to 158°F)(storage) |
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
Ambient light: |
Fluorescent light 4000 lx max |
Shock drop test |
1.5m drop onto concrete surface |
Regulatory |
|
Electrical safety |
UL 60950,EN/IEC 60950 |
EMI/RFI |
FCC Part 15 Class B ,EN 55024/CISPR 22 |
Environment |
RoHS |
