Scan -Hand -Barcode -Leser -Barcode -Scanner scannen

Scan -Hand -Barcode -Leser -Barcode -Scanner scannen

$291-49 Others

$2550-199 Others

$23≥200Others

Zahlungsart:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express,Others
Hafen:	guangzhou

Option:

WNC-5060g

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WNC-5060g

Marke: Winson

Zertifizierung: ce, andere

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CCD

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Products Status: Stock

Type: Wireless 1D Scanner

Scan Element Type: CCD Barcode Scanner

Colour Depth: 32 Bit

Interface Type: usb, COM, PS/2

Max Paper Size: N/A

Optical Resolution: 1500 pix

Scan Speed: 350+50(scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Product Name: Wireless 1D Scanner

Product Type: 1D CCD Barcode Scanner

Photo Sensor: CCD linear sensor

Communications: Wired transmission mode

Communication Frequency: BT 4.0

Voltage Requirement: 5VDC±10%

Print Contrast: 20%UPC/EAN 13(13mil)

Current: Max:135mA

Light Source: 632nm red LED

Dimensions: 90mm*67mm*168mm

Verpackung & Lieferung

Verkaufseinheiten	:	unit
Pakettyp	:	Angepasste Verpackung (ausgehandelt)

Produktbeschreibung

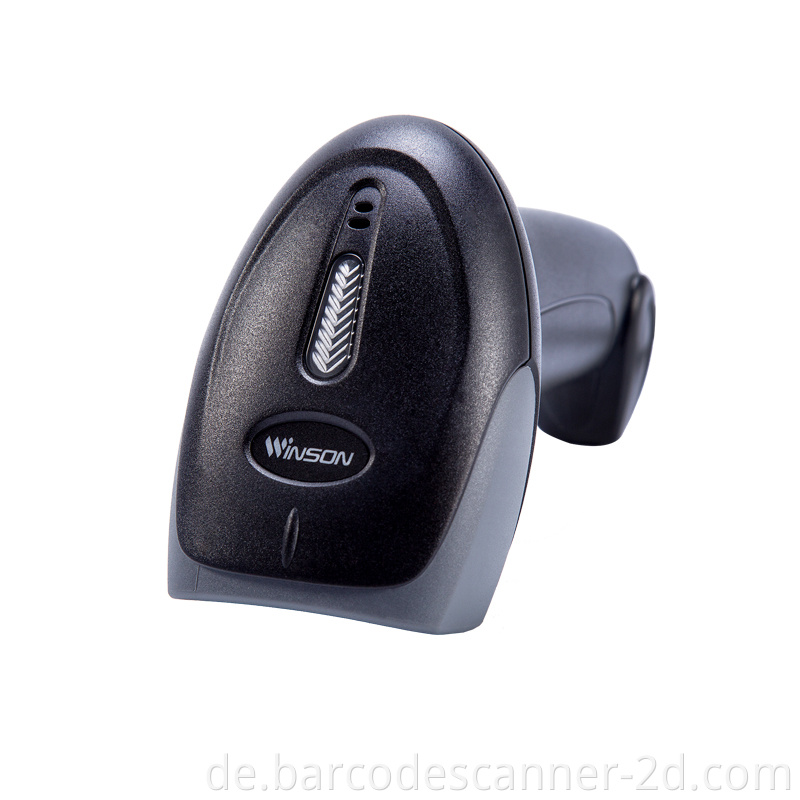

Barcode Scanner

2D CMOS Barcode Scanner -Anwendungsfelder: Paketschließfach, Supermarktschließfach, Ticketmaschine, Self-Service-Verkaufsautomaten, intelligentes Expressschrank, Kiosk, Locker, Access-Steuerungsmaschine, Self-Service-Store, Check-in-Maschine, Bankzähler-, Werksgebiets-Montage Linie, Logistik, Krankenhaus, PDA usw.

Schnelles Scannen schwarzer weißer Handheld -Barcode -Leser 1D Laser USB Wickel Barcode Barcode Scanner -Modul

Support Secondary Development - Die Anweisung für serielle Portentwicklungen ist abgeschlossen, um jede Art von interaktiver Bedarf an Host -Computer zu erfüllen.

Mit dem Mini -USB -Empfänger, Plug & Play, ergonomischem Design, bequem das QR -Scannermodul .

Barcode Scanner

winson company

Produktdetail

Technical Specifications
Wireless specifications
Communication mode		Wired transmission mode/ Wireless Read-time mode&Inventory mode/Cache mode
Communication frequency		BT 4.0(2.402 to 2.480GHz Adaptive frequency hopping)
Transmission range		≤10M(In empty area 15M)
Battery capacity		1500mAh (Lithium battery)
Charge Time from Empty to Full Charge		4.5H
Scans per Battery Charge		30,000 (1 scan per second)
Memory		100,000@13Byte barcode
Electrical Characteristics
Interface Supported	USB HID KEYBOARD
Input Voltage	DC 5V±10%
Current	Max:135mA
Optical Characteristics
Image Sensor	CCD Linear Sensor
Sensor Resolution	2500pixels
Light Source	632nm Red LED
Performance Characteristics
Decoding rate:	350 scans/second±20 scans/second
Scanning Angle	Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min Resolution	0.105/4mil(PCS 0.9)
Min .PCS value	>25%UPC/EAN 13(13mil)
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions	Scanner:90mm67mm168mm(LWH)
Weight	Scanner:160g
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
