CMOS 2D Wireless 2.4G -Leser

$351-49 Others

$2950-199 Others

$25≥200Others

Zahlungsart:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express,Others
Hafen:	guangzhou

Option:

WNI-6712/V

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WNI-6712/V

Marke: Winson

Zertifizierung: ce

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CMOS

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 16 Bit

Interface Type: Usb

Max Paper Size: N/A

Optical Resolution: 648 X 488 Pixels

Scan Speed: 30 fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Interface: USB HID KEYBOARD(Wireless receiver)

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10%

Battery Capacity: 1500mah

Charging Time: 4.5H

Min Resolution: 1D≥4mil,2D≥10mil

Min.PCS Value: >15%UPC/EAN 13(13mil)

Dimension (L*W*H): 95mm*67mm*168mm(L*W*H)

Weight: 186

Certification: Ce, Rohs

Verpackung & Lieferung

Verkaufseinheiten	:	unit
Pakettyp	:	Brown Box Packing oder Customized Packing (ausgehandelt) 1pcs/Box, 20/50pcs/Karton
Bildbeispiel	:

Produktbeschreibung

Unterstützung des CCD -Barcode -Scanners von RS232, USB, TTL, Micro USB -Schnittstelle.

Mit dem Mini -USB -Empfänger, dem Plug & Play, ergonomischem Design, bequem, um ein kleines Barcode -Scannermodul zu halten.

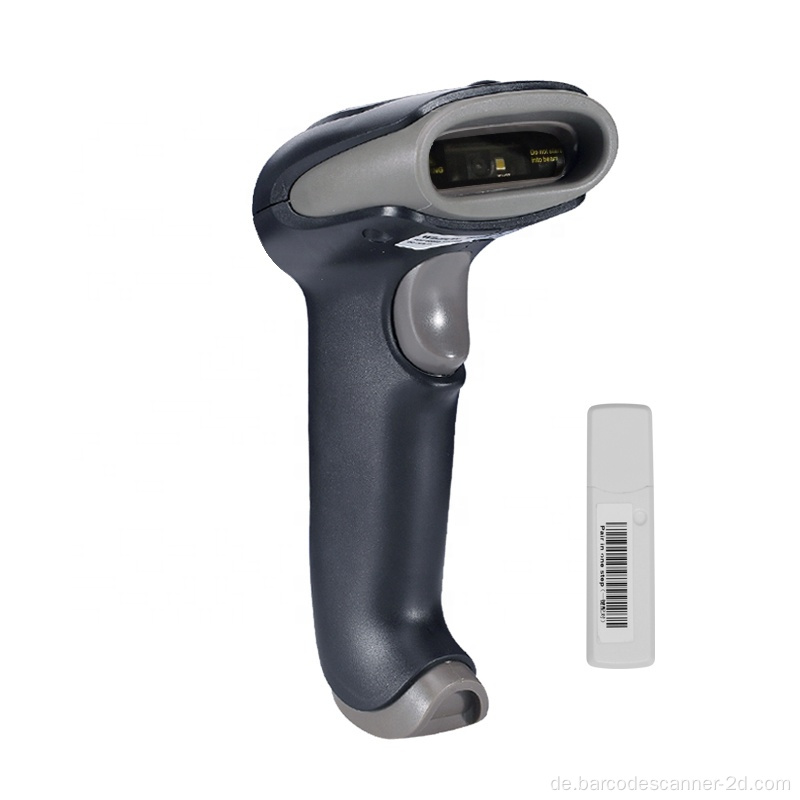

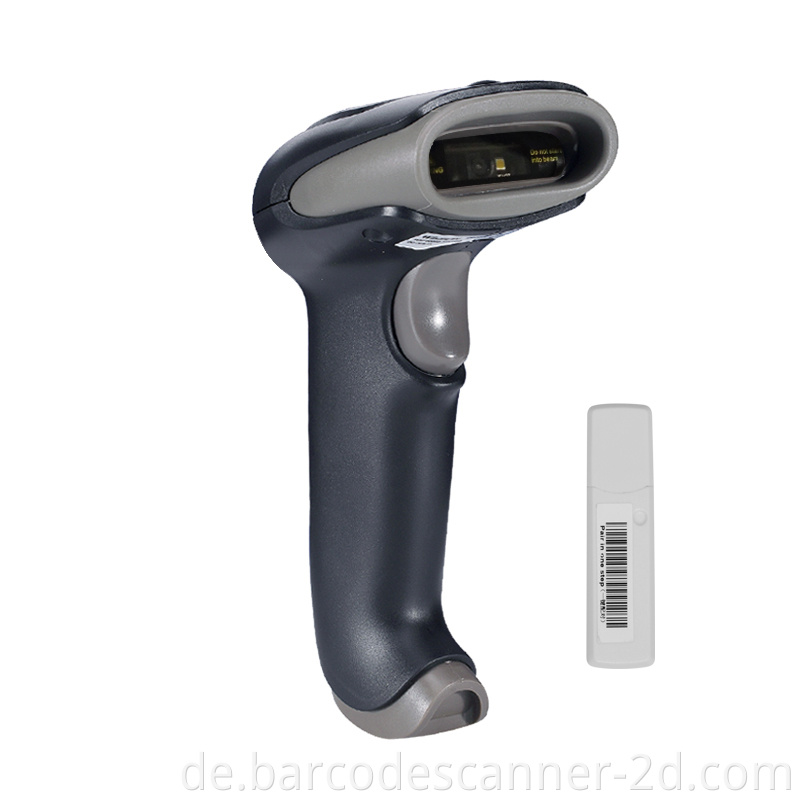

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader Wide Range Bar Code Reader

Wireless 2.4G Reader

winson company

Produktdetail

Technical Parameters
Electrical Characteristics
Interface	USB HID KEYBOARD(Wireless receiver)
Current consumption	Max:120mA,Min:50mA
Optical Characteristics
Photo sensor	CMOS array sensor
Sensor Resolution	648x488 Pix
Light source	White LED*1
Aim light source	Red Bar led
Performance Characteristics
Decode angle	Pitch angle:±60° Skew angle:±60° Tilt angle:±180°
Field of View	46°(H),35°(V)
Min resolution	1D≥4mil 2D≥10mil
Min.PCS value	>15%UPC/EAN 13(13mil)
Language	Multiple languages
Identification	1D: Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Omnidirectional,Hong Kong 2 of 5(China Post),Interleaved 2 of 5,Matrix 2 of 5,Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E 2D:Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix
Physical Characteristics
Dimensions	95mm×70mm×168mm(L x W x H) Receiver:83mm18mm13mm(LWH)

Weight	Scanner:186g Receiver:16g
Environmental Characteristics
Temp	0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)
Humidity	20 - 85% (operation) ) 20 - 95% (storage)
Ambient Light	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
