Guangzhou Winson Information Technology Co., Ltd.
$120-155 /unit
| Zahlungsart: | L/C,Western Union,T/T,Paypal,MoneyGram |
| Incoterm: | FOB,CIF,EXW,DDP |
| Minimum der Bestellmenge: | 1 unit |
| Transport: | Ocean,Land,Air,Express,Others |
| Hafen: | Guangzhou/Shenzhen |
Modell: WDI-4000
Marke: Winson c
Zertifizierung: ce
Produktstatus: Lager
Arten Von: Barcodelesegerät
Scanelementtyp: CCD
Farbpunkt: 32 Bit
Oberflächentyp: USB
Herkunftsort: China
Garantiezeit (Jahre): 1 Jahr
Kundendienst: Call Center und technischer Online-Support
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 32 Bit
Interface Type: usb, TTL-232
Max Paper Size: N/A
Optical Resolution: 640*480 pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software Development Kit (SDK): NO
Product Name: Barcode Reader Module
Connector: 0.5-12P FPC
Interface: TTL/USB HID keyboard
Photo Sensor: CMOS array sensor
Voltage / Current: DC 3.3V/5V ±10%; Max 450ma
Sensor Resolution: 640*480 pixels
Print Contrast: >25%UPC/EAN 13(13mil)
Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS
Dimensions (W X D X H): 25.3x10x21mm
Weight: 5.5 g(0.19oz)
Zertifizierung: Ce, Rohs
| Verkaufseinheiten | : | unit |
| Pakettyp | : | Brown Box Packing oder Customized Packing (ausgehandelt) |
| Bildbeispiel | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

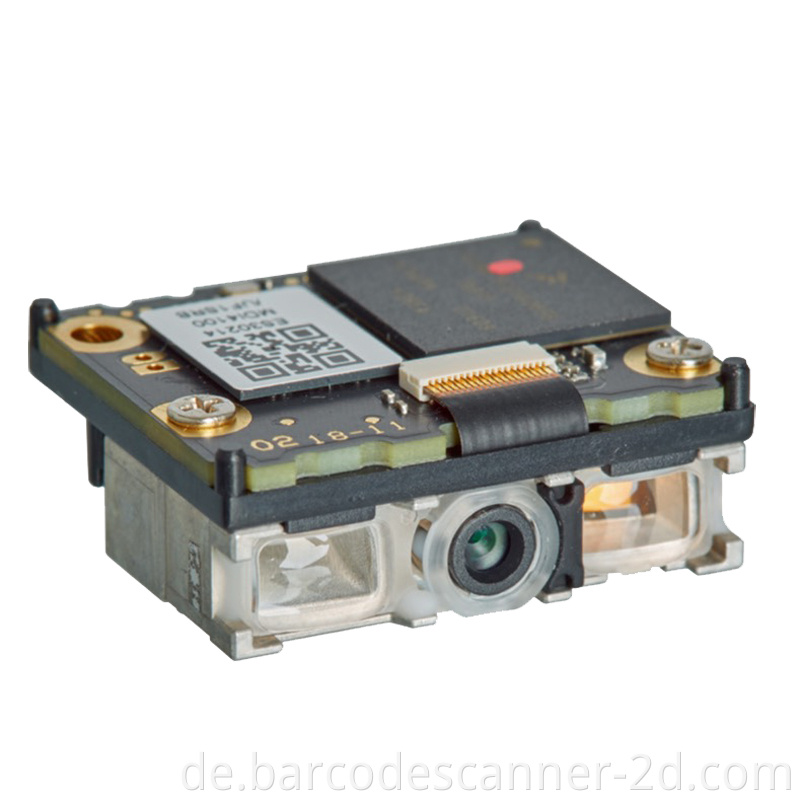

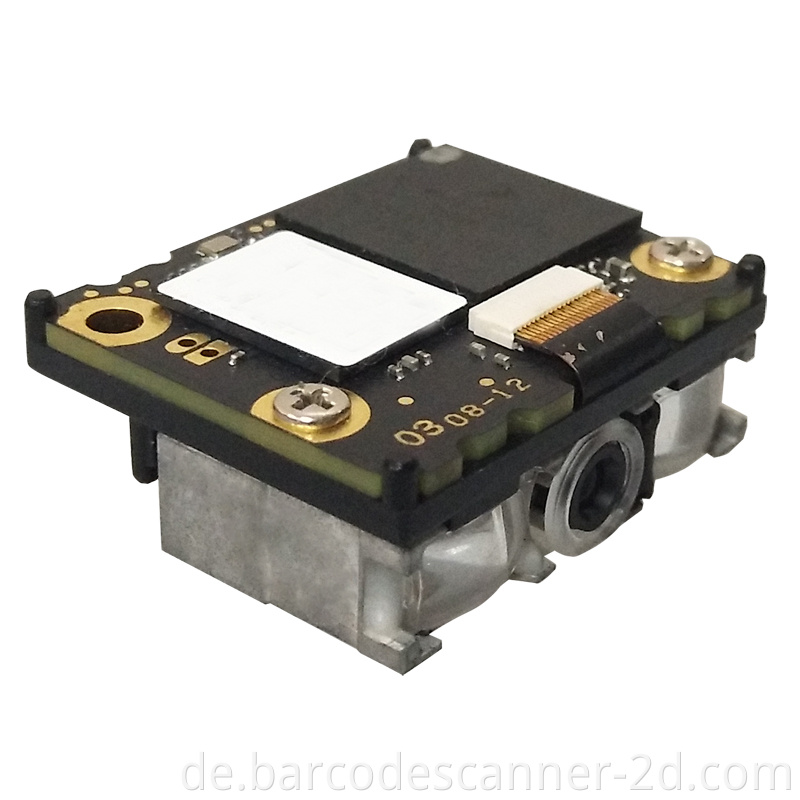

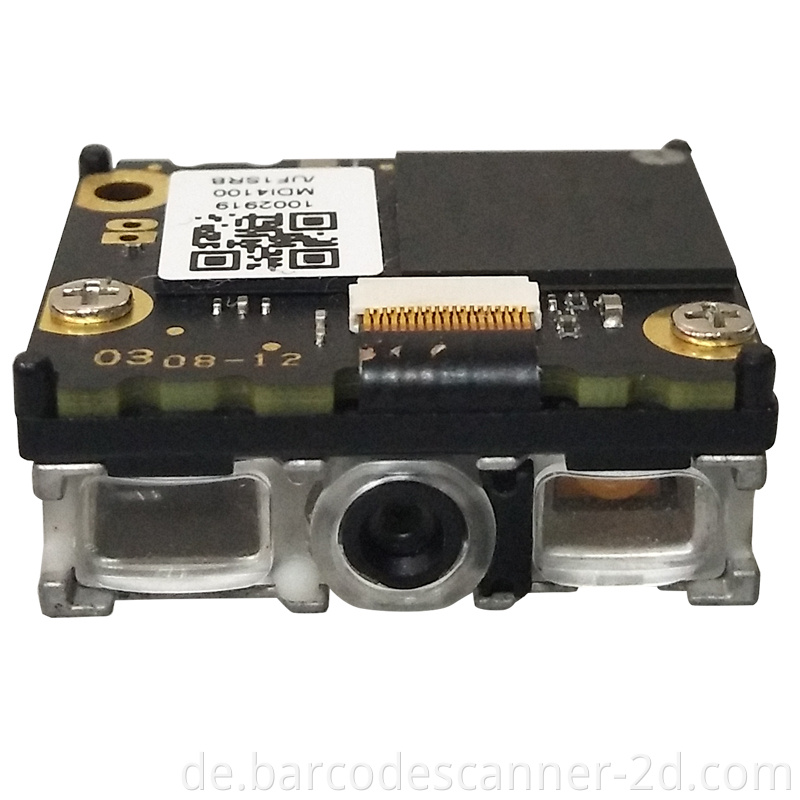

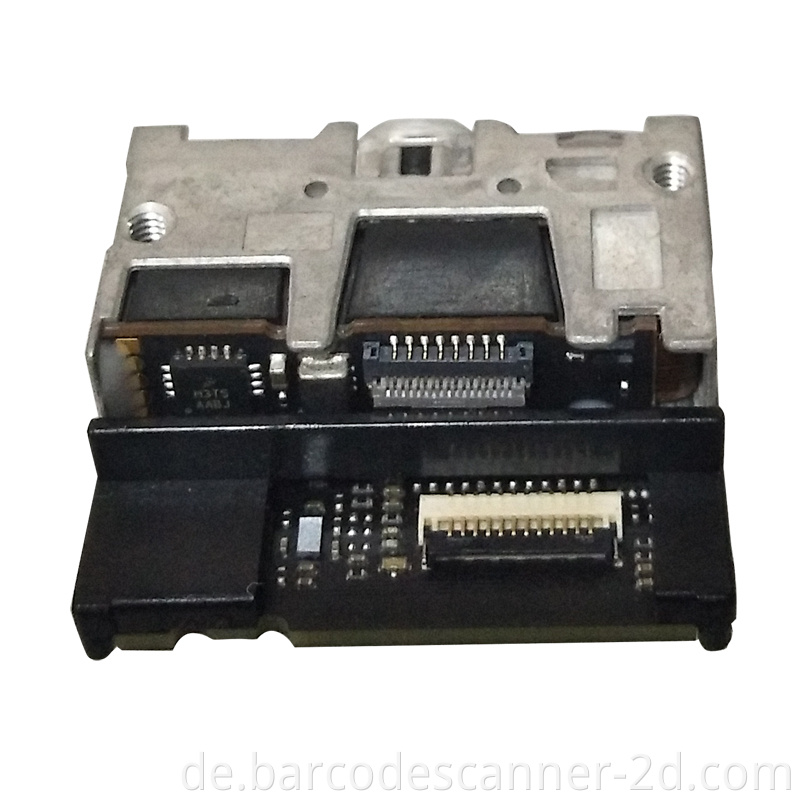

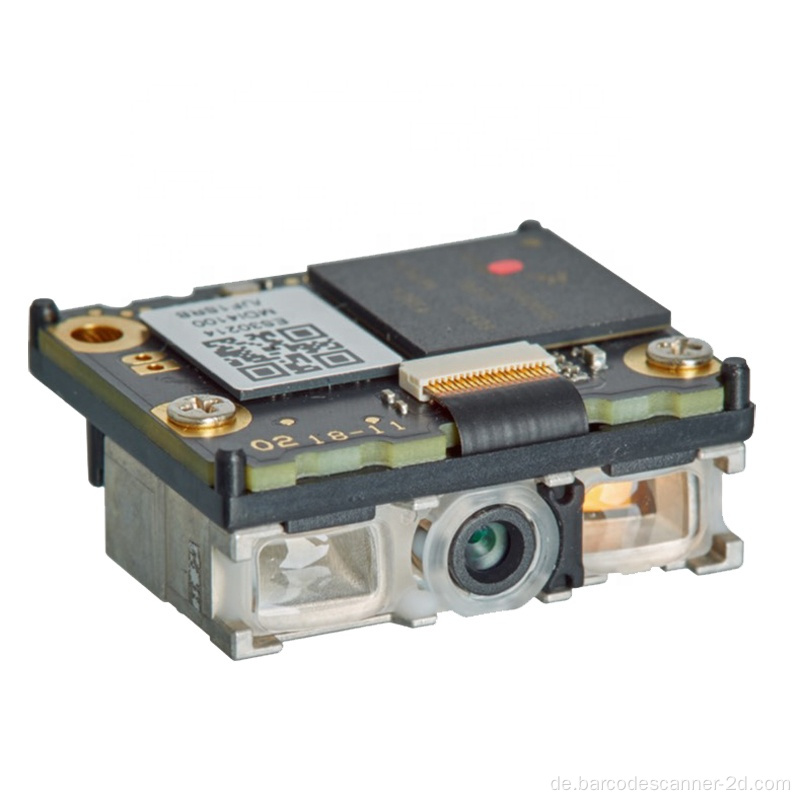

Winson WDI-4000SR Mini CMOS-Code-Leser-Modul Hochleistung PDF417 CCD Fixmontierter Scanner
2D Fixed Mount Barcode Scanner unterstützt die Verbindung mit dem Computer, Laptop. Kompatibler Betriebssystem für Linux, Windows XP, 7,8,10 Fixmorbscanner .
Wide Range Bar Code Reader -Anwendungsfelder: Supermarkt, Einzelhandel, Lagerhaus, Logistik, Bibliothek, medizinischer usw. Barcode -Scanner für Lagerhaus .
Eingebettete Scannerunterstützung Sekundärentwicklung - Der Anweisungen zur seriellen Portentwicklung ist abgeschlossen, um jede Art von interaktiver Bedarf an Host -Computer zu erfüllen.
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
TTL/USB HID keyboard |
|
Interface connector |
0.5-12P FPC |
|
Voltage requirement |
DC 3.3V / 5V ±5% |
|
Current consumption |
Max: 450mA (3.3V) ; Max: 320mA (5.0V) |
|
Optical Characteristics |
|
|
Photo sensor |
CMOS array sensor |
|
Sensor resolution |
640*480 pixels |
|
Light source |
white LED*1 |
|
Aim light source |
Green Bar LED |
|
Performance Characteristics |
|
|
Scan rate |
30fps |
|
Decode angle |
|
|
Min resolution |
1D:5mil(0.127mm) 2D:10mil(0.25mm) |
|
Min.PCS value |
>30%UPC/EAN 13(13mil) |
|
Field of View |
38°(H),29°(V) |
|
Language |
multiple languages |
|
Identification |
1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D:Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
|
Physical Characteristics |
|
|
Dimension |
25.3 mm x 10 mm x 21mm(L*W*H) |
|
Weight |
5.5g |
|
Configurations |
Decode |
|
Environmental Characteristics |
|
|
Temp |
0°to 50°C (operation) -10°-to 60°C (storage) |
|
Humidity |
20 - 85% (operation) ) 5 - 95% (storage) |
