Mini -Barcode -Scannermodul 2D COMS Scanner Engine

Mini -Barcode -Scannermodul 2D COMS Scanner Engine

$49.92-49 Others

$45.950-499 Others

$34.9≥500Others

Zahlungsart:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express,Others
Hafen:	guangzhou

Option:

WDI-2011

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WDI-2011

Marke: Winson

Zertifizierung: ce

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CCD, CMOS

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Products Status: Stock

Type: 2D Barcode Reader Module

Scan Element Type: 2D

Colour Depth: 32 Bit

Interface Type: usb, TTL-232/USB

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Return and Replacement, Call Center and on-line Technical Support

Product Name: 2D Barcode Reader Module

Product Type: QR Bar Code Scan Engine

Interface: TTL-232/USB

Photo Sensor: COMS array sensor

Connector: 0.5-12P FPC

Min Resolution: 1D:4mil(0.101mm) 2D:7mil(0.178mm)

Aim Light Source: Red LED

Field Of View: 54°(H),33°(V)

Sprache: Multiple languages

Zertifizierung: Ce, Rohs

Verpackung & Lieferung

Verkaufseinheiten	:	unit
Pakettyp	:	Angepasste Verpackung (ausgehandelt)

The file is encrypted. Please fill in the following information to continue accessing it

Produktbeschreibung

Winson 2D Barcode Scanner Engine WDI-2011 CCD Barcode Scanner Barcode-Leser für die Verkaufsmaschine

Unterstützung des QR -Code -Scanner -Moduls von RS232, USB, TTL, Micro USB -Schnittstelle.

Eingebautes 2600-mAh-Akku, Super-Long Standby Time Industrial Barcode Reader .

Produktbeschreibung

COMS Scanner Engine

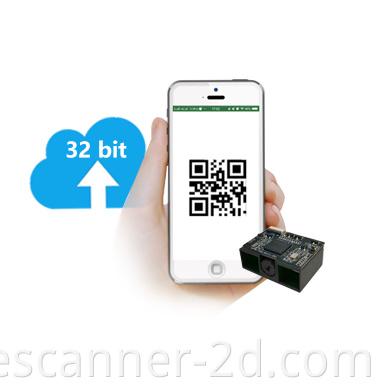

Better scanning performance 32-bit CPU, scanning code speed up to 60FPS per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.

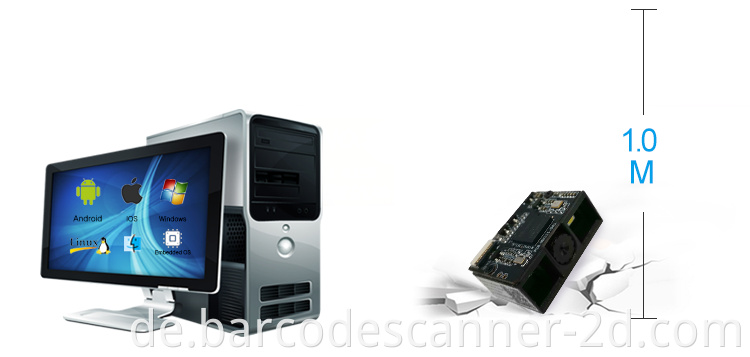

Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

COMS Scanner Engine

winson company

Produktdetail

Technical parameters
Electrical Characteristics

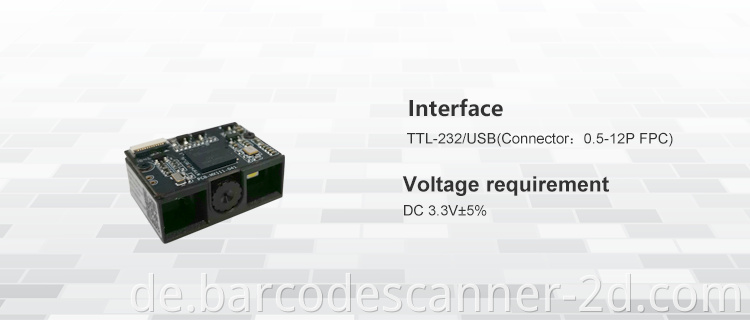

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V±5%
Current consumption	Max:250mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	1280X800pixels
light source	white LED*1
Aim light source	Red Bar LED
Performance Characteristics
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°
Min resolution	1D:4mil(0.101mm) 2D:7mil(0.178mm)
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	54°(H),33°(V)
Language	multipl languages
