Laserleserscanner USB 1D 2D BS-727

$37.51-99 Others

$32.5100-999 Others

$25.5≥1000Others

Zahlungsart:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express,Others
Hafen:	guangzhou

Option:

WNC-5083/V

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WNC-5083/V

Marke: Winson

Zertifizierung: ce

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CCD

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 8 Bit

Interface Type: usb, RS-232

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 350+-50

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Interface: RS-232/USB HID KEYBOARD/USB VCP

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±5%

Current: Max 180ma

Light Source: White Led

Min Resolution: 1D:0.101mm/4mil, 2D:0.178mm/7mil

Min.PCS Value: >15%UPC/EAN 13(13mil)

Weight: 180g

Zertifizierung: Rohs

Verpackung & Lieferung

Verkaufseinheiten	:	unit
Pakettyp	:	Brown Box Packing oder Customized Packing (ausgehandelt) 1pcs/Box, 20/50pcs/Karton
Bildbeispiel	:

The file is encrypted. Please fill in the following information to continue accessing it

Produktbeschreibung

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR-Code Wired Barcode Scanner BS-727 Protellerer Barcode-Scanner

Anwendungsfelder: Supermarkt, Einzelhandel, Lagerhaus, Logistik, Bibliothek, medizinisches usw. Mini Auto-Scanning-Modul.

Lesen Sie Barcode mit nur 3,3 Mio. Generalzweck -Scannern .

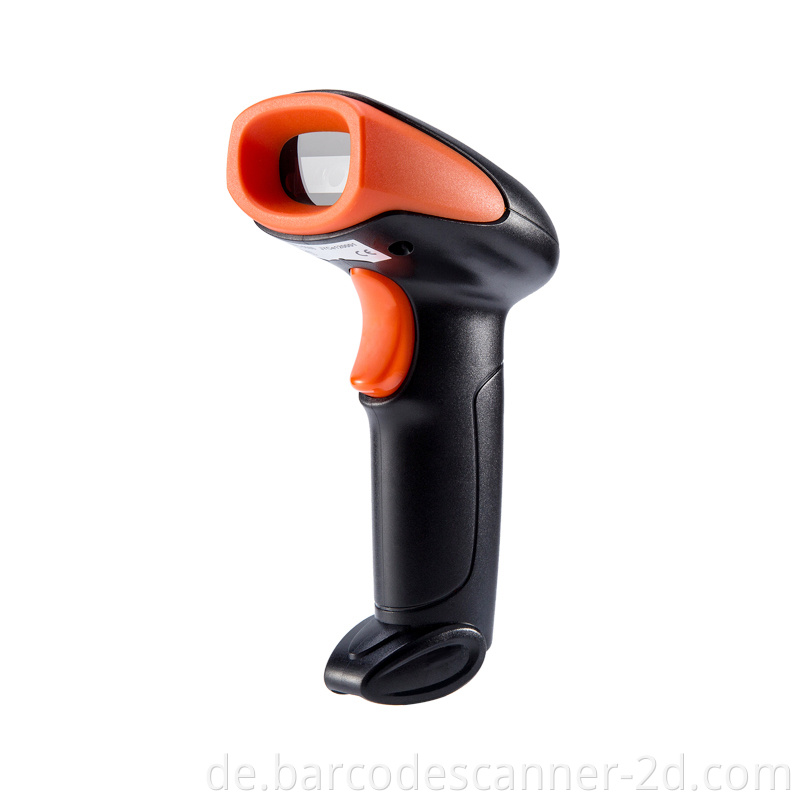

2d barcode scanner

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR-Code Wired Barcode Scanner BS-727 Protellerer Barcode-Scanner 2d barcode scanner

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR-Code Wired Barcode Scanner BS-727 Protellerer Barcode-Scanner

winson company

Produktdetail

Technical Specifications
Electrical Characteristics
Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:180mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640X480 Pixels
Light Source	White LED
Aim Light Source	Red Bar LED
Performance Characteristics
Scanning Angle	Pitch angle:±65°;Skew angle:±60°;Tilt angle:±180°
Field of View	40°(H),29°(V)
Min Resolution	1D:0.101mm/4mil(PCS 0.9) 2D:0.178mm/7mil(PCS 0.9)
Min .PCS value	>20% UPC/EAN 13(13mil)
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D : UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar, 2D : QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec
Physical Characteristics
Dimensions	90mm67mm168mm(LWH)
Weight	120g
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
