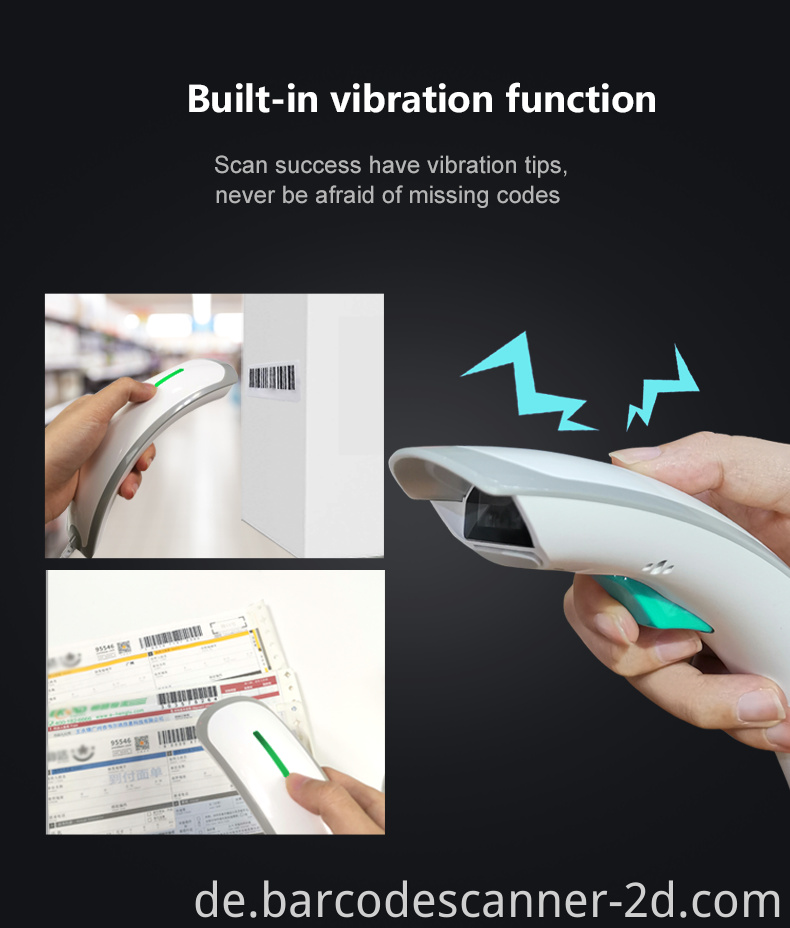

Produkt 2D Barcode Scanner POS QR -Code -Scanner

Technical Parameters

Electrical Characteristics

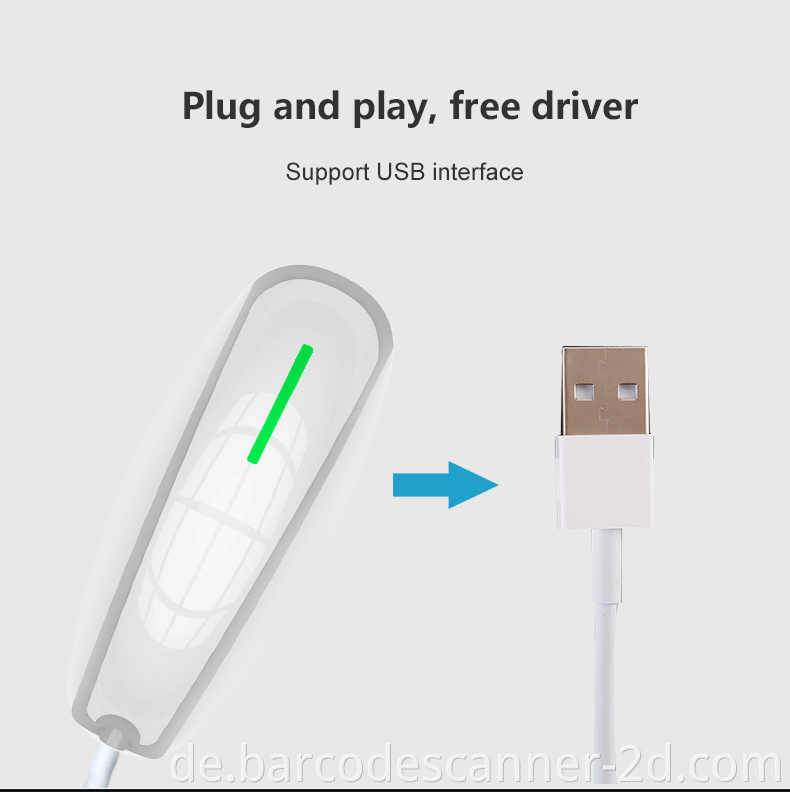

Interface

RS-232/USB HID KEYBOARD/USB VCP

Voltage requirement

DC5V±10%

Current consumption

Max :500mA

Optical Characteristics

Photo sensor

CMOS linear sensor

Sensor Resolution

640X480 Pixels

Light source

625nm Red Bar LED

Performance Characteristics

Scan Rate

Decode angle

Pitch angle:±50°

Skew angle::±50°

Tilt angle:±180°

Min resolution

0.076mm/3mil(PCS 0.9)

Min.PCS value

>30%UPC/EAN 13(13mil)

Curvature

R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

Language

Multiple languages

Error rate

1/500W

Identification

1D: Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand

2D:QR ,PDF417 ,Data Matrix

Physical Characteristics

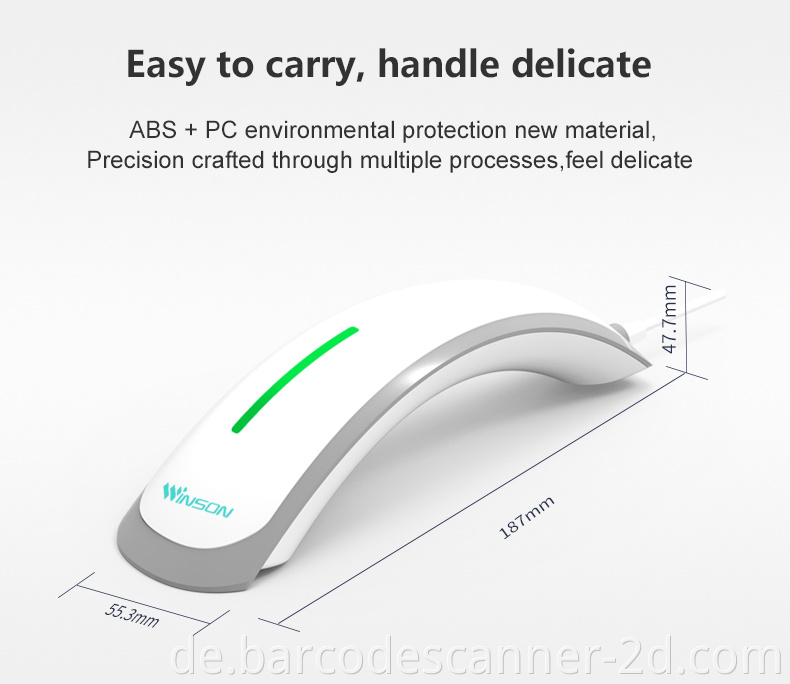

Dimensions

55.3mm×47.7mm×187mm(L x W x H)

Weight

120g

Environmental Characteristics

Temp

-20°-65°C / -4°to 149°F((operation) )   -30°- 70°C /-22°to 158°F(storage)

Humidity

5 - 90% (operation) ) 5 - 90% (storage)

Ambient Light

Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Shock drop test

1.5m drop onto concrete surface
