WNC-6094B Wireless 1D CCD Barcode Scanner

WNC-6094B Wireless 1D CCD Barcode Scanner

$55.51-49 Others

$49.550-199 Others

$44.5≥200Others

Zahlungsart:	L/C,T/T,D/P,Paypal,D/A,Others
Incoterm:	FOB,CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express,Others
Hafen:	guangzhou

Option:

WNC-5083/V

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WNC-5083/V

Marke: Winson

Zertifizierung: ce, andere

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CCD

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Private Mold: Yes

Products Status: Stock

Type: Wireless CCD Scanner Gun

Scan Element Type: Ccd

Colour Depth: 32 Bit

Interface Type: usb, RS232/RS485

Max Paper Size: N/A

Optical Resolution: 2500 Pix

Scan Speed: 350+50(scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Communication: RF433

Voltage/Current: DC 5V+-10% ; MAX 138ma

Transmission Range: <=100m in empty area

Interface: USB HID KEYBOARD / USB VCP

Photo Sensor: CCD linear sensor

Operation Mode: read time, inventory, cache mode

Battery Capacity: 1500mah lithium battery

Charging Time: 4.5H

Working Time: 4h: continuous reading; 9.5h manual reading; 15days standby

Memory: 100000@13 byte barcode

Verpackung & Lieferung

Verkaufseinheiten	:	unit
Pakettyp	:	Brown Box Packing oder Customized Packing (ausgehandelt) 1pcs/Box, 20/50pcs/Karton

WNC-6094B High Scan Speed Wireless 1D CCD-Barcode-Scanner und Bildschirmleser mit USB-Handheld-Barcode-Scanner1



Produktbeschreibung

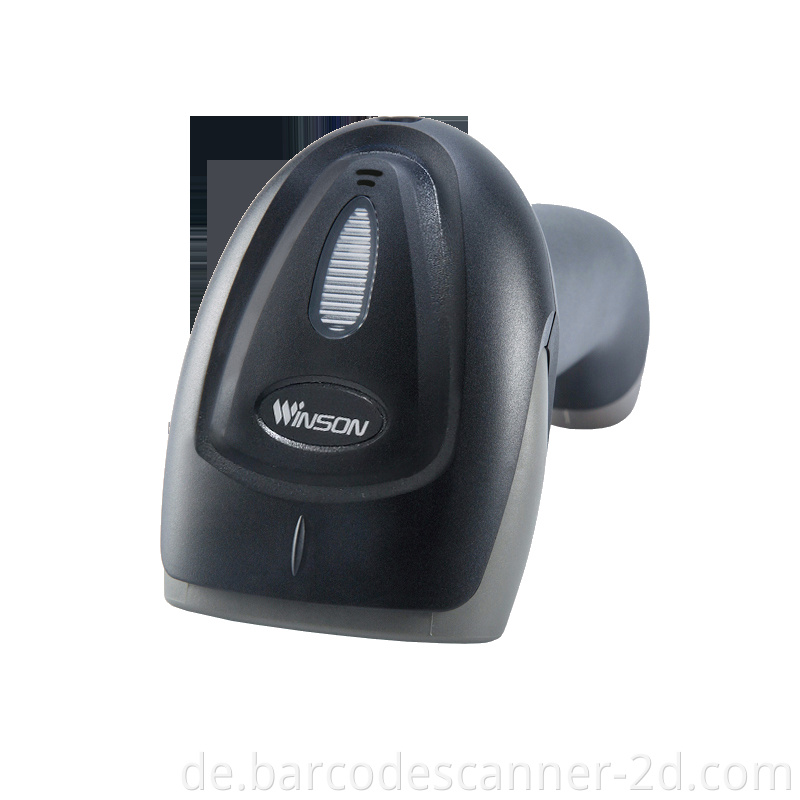

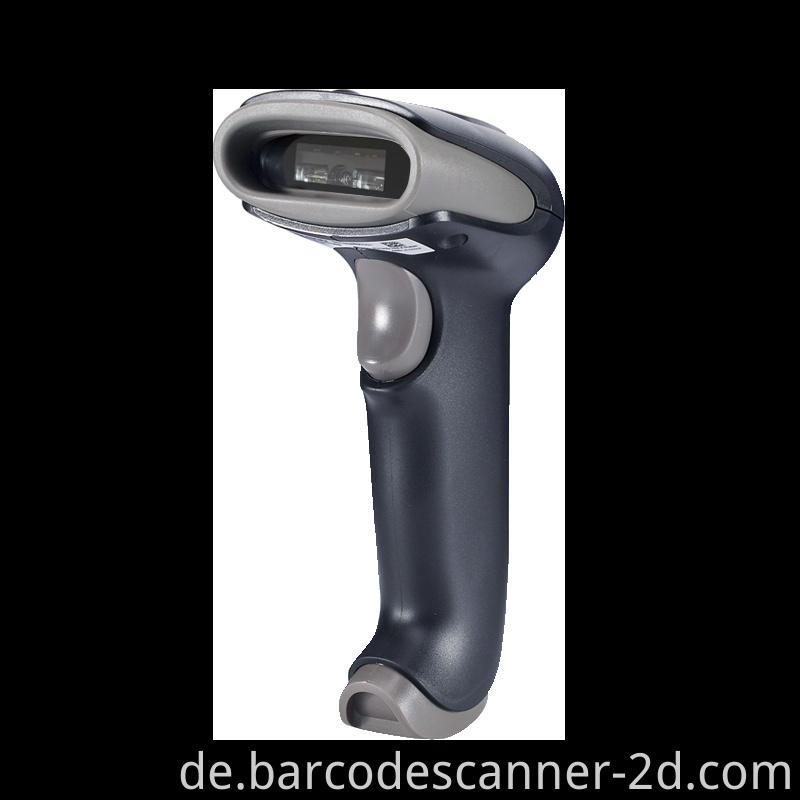

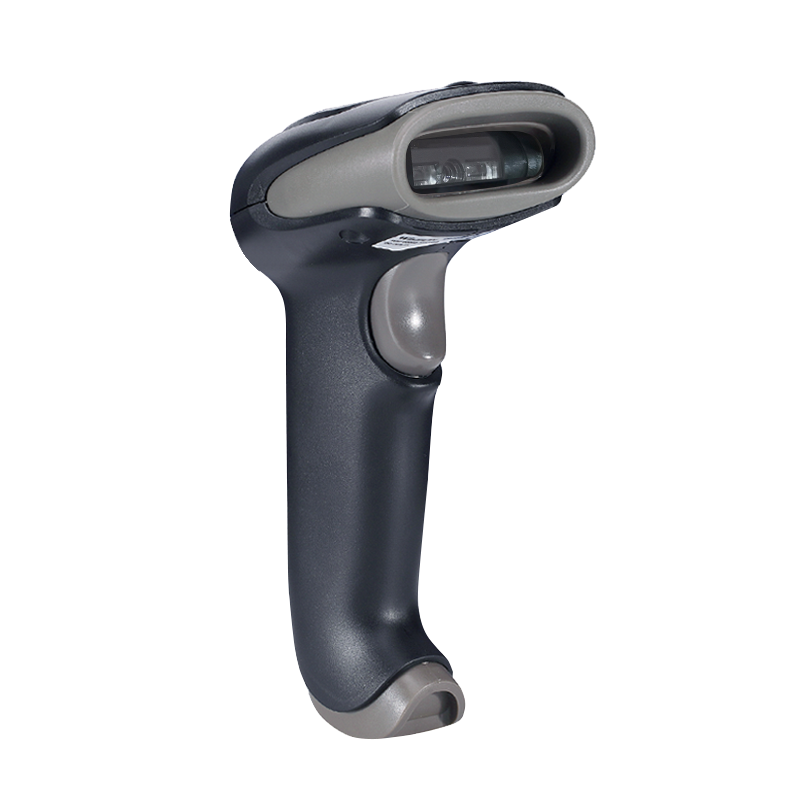

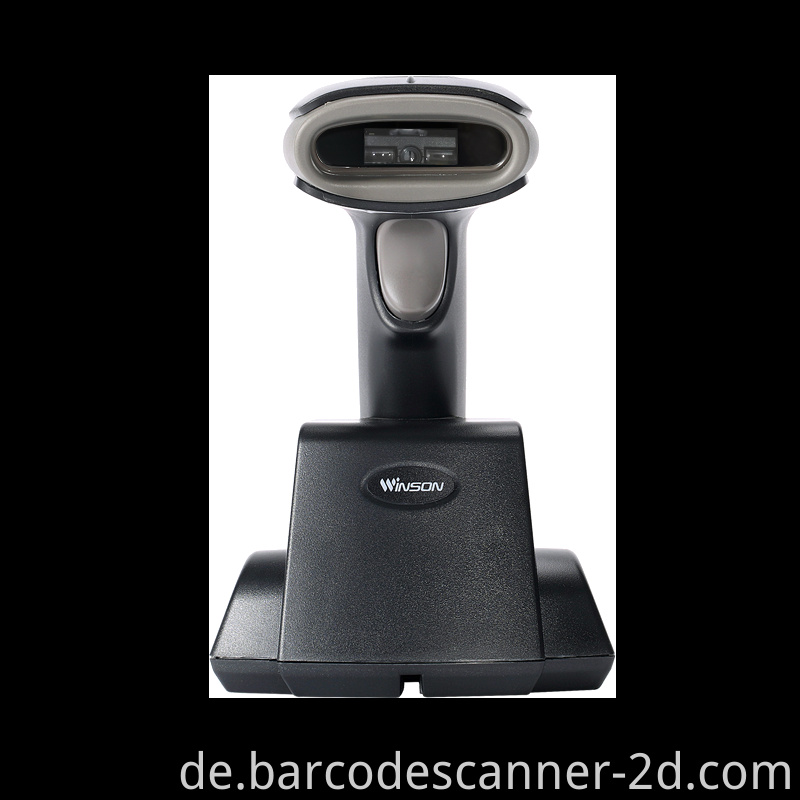

Barcode Scanner

WNC-6094B High Scan Speed Wireless 1D CCD-Barcode-Scanner und Bildschirmleser mit USB-CCD-Barcode-Leser.

1. Verwendung von RF433 Wireless Getriebe Technologie Handheld CCD -Scanner

Langstrecken -drahtlose Übertragung und Echtzeitmodus, Inventarmodus und Cache -Modus, um die Anforderungen verschiedener Anwendungen zu erfüllen.
2. Schocksicherer und Anti-gebrochenes CMOS-Barcode-Scanner
Es kann normalerweise von 1,2 Meter bis zum Zementboden fallen.
3.Workszenen Scanner Mount
Winson Barcode Scanner bewerben sich für das Registrierungsbüro des Flughafens/Bahnhofs, Krankenhäuser, Lagerhäuser, Supermärkte, Einzelhandelsgeschäfte, Bibliotheken, Catering, Logistik, ausdrückliche Lieferung usw.

Barcode Scanner

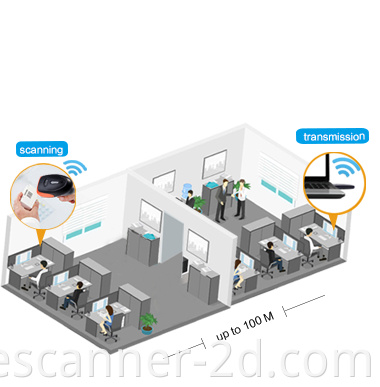

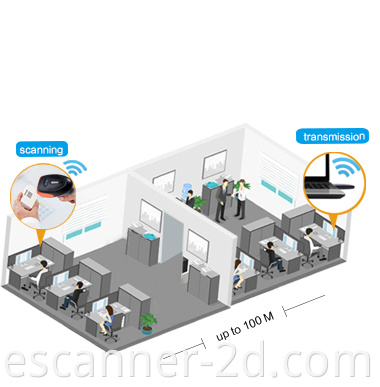

RF433 wireless transmission The transmission range up to 100 meters (In empty area). Mass storage 100,000 @ 13 Byte barcode


1500 mAh lithium battery Supports 12 hours continuous normal manual trigger working,compatible with wire and wireless working mode.	Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.

winson company

Produktdetail

Technical parameters
Wireless specifications
Communications		433
Communication frequency		430-440MHz
Transmission range		≤100M(In empty area 100M )
Data rate		10kbps
Memory		100,000@13Byte barcode
Battery capacity		1500mAh (Lithium battery)
Charging time		4.5H
The life time of the full charge		4h(continuous reading situation) 9.5h(Manual reading situation) More than 15 days(Stand-by time)
Communication mode		Read-time mode/Inventory mode/Cache mode
Electrical Characteristics
Interface	USB HID KEYBOARD(Wireless receiver)
Voltage requirement	DC 5V±10%
Current consumption	Max:138mA
Optical Characteristics
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
light source	632nm red led
Performance Characteristics
Scan Rate:	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
Min resolution	0.127mm/5mil(PCS 0.9)
Min.PCS value	>25%UPC/EAN 13(13mil)
curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Language	multiple languages
Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions	Scanner:97 mm x 67 mm x165mm (LWH) Receiver:83mm18mm13mm(LWH)
Weight	Scanner:162g received:16g
Environmental Characteristics
Temp	-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°-158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Shock drop test	1.3m drop onto concrete surface
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Regulatory
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
