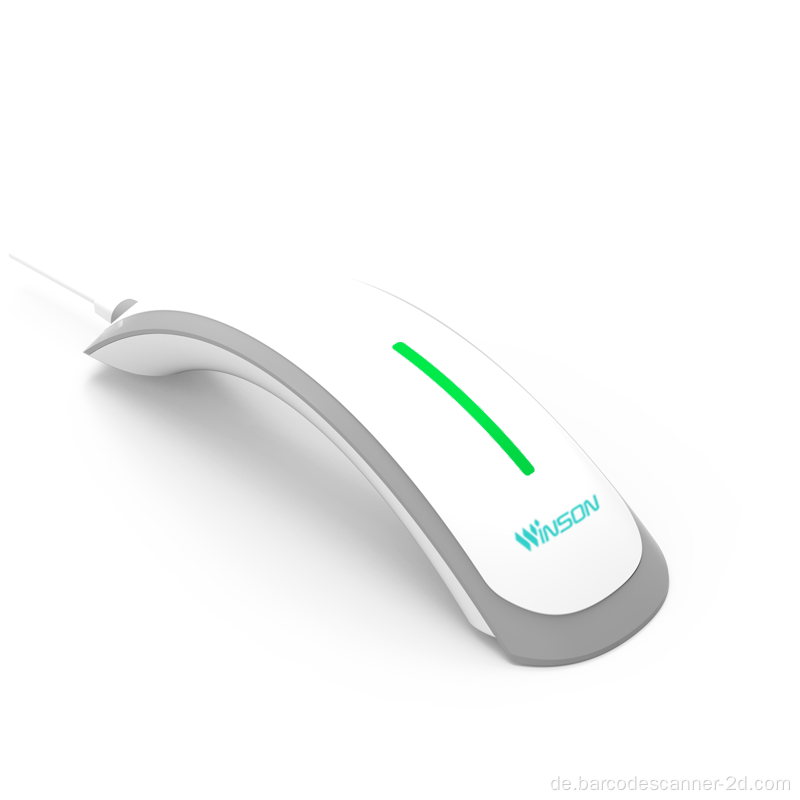

Kabelgebundener Supermarkt Barcode Scanner

Kabelgebundener Supermarkt Barcode Scanner

$351-99 Others

$29100-999 Others

$25≥1000Others

Zahlungsart:	L/C,T/T,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
Transport:	Ocean,Land,Air,Express
Hafen:	guangzhou

Option:

WNI-9210

Kontaktieren jetzt

Produktbeschreibung

Produkteigenschaften

Verpackung & Lieferung

Produktbeschreibung

Produkteigenschaften

Modell: WNI-9210

Marke: Winson

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 16 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 60

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Green, White

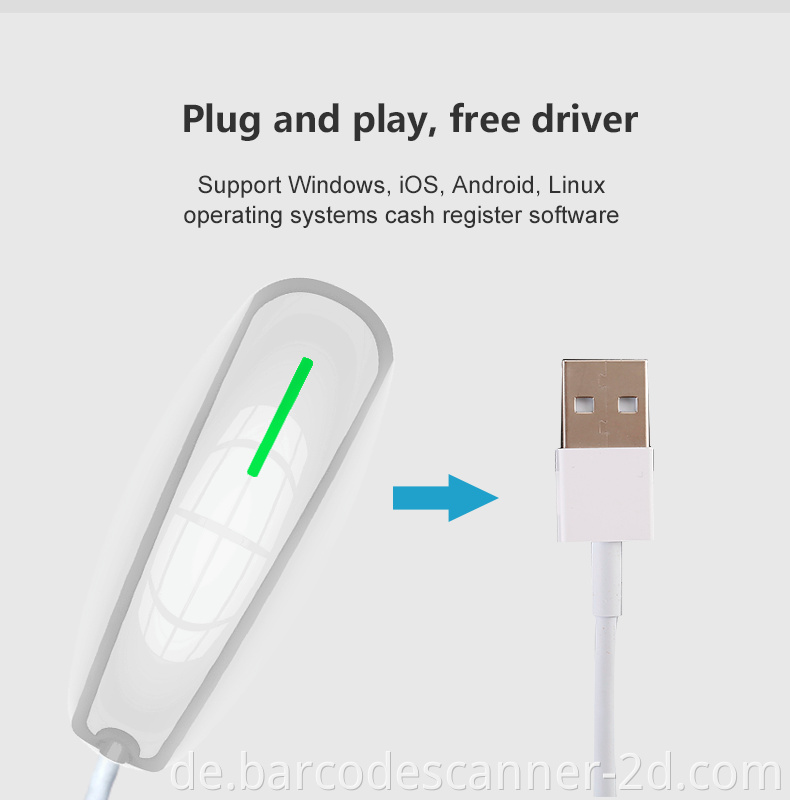

Interface Supported: RS-232/USB HID KEYBOARD/USB VCP

Input Voltage: DC 5V±10%

Current: Max:100mA

Image Sensor: CMOS Array Sensor

Light Source: White Led

Min Resolution: 1D:5mil(0.127mm)

Min .PCS Value: >30%UPC/EAN 13(13mil)

Sprache: Multiple languages

Zertifizierung: Ce

Zertifizierung: ce, andere

Produktstatus: Lager

Arten Von: Barcodelesegerät

Scanelementtyp: CCD, CMOS

Farbpunkt: 32 Bit

Oberflächentyp: USB

Herkunftsort: China

Garantiezeit (Jahre): 1 Jahr

Kundendienst: Call Center und technischer Online-Support

Verpackung & Lieferung

Verkaufseinheiten	:	piece
Pakettyp	:	Angepasste Verpackung (ausgehandelt)
Bildbeispiel	:

The file is encrypted. Please fill in the following information to continue accessing it

Produktbeschreibung

Spezifikation

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:250mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	1280X800 Pixels
Scanning Angle	Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180°

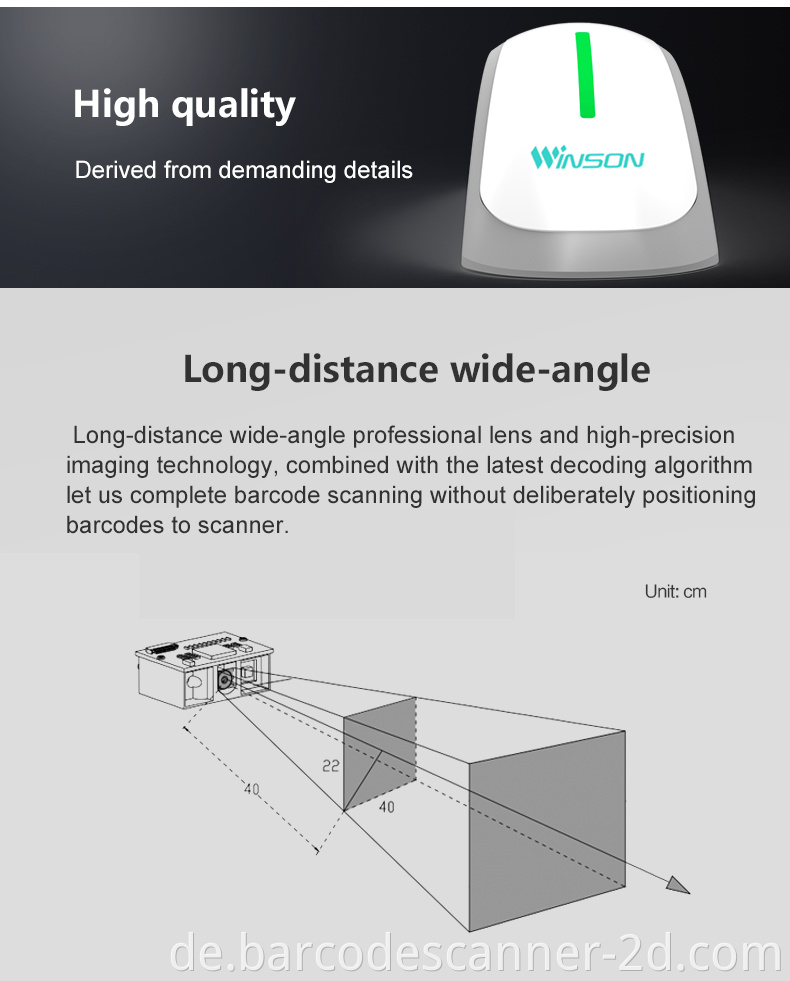

Field of View	53°(H),33°(V)
Min Resolution	1D：0.101mm/4mil（PCS 0.9） 2D：0.178mm/7mil（PCS 0.9）
Min .PCS value	〉20% UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D: UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of 5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C； 2D：PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode

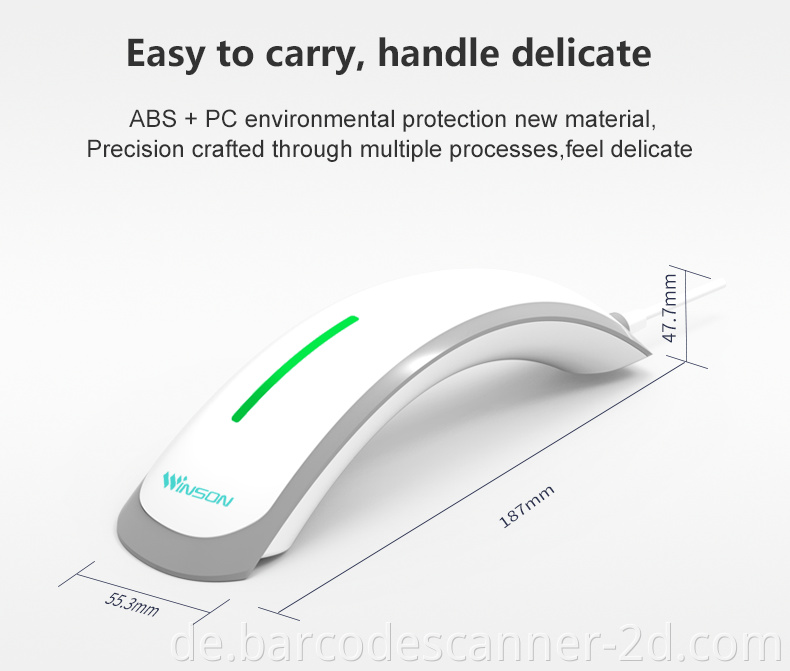

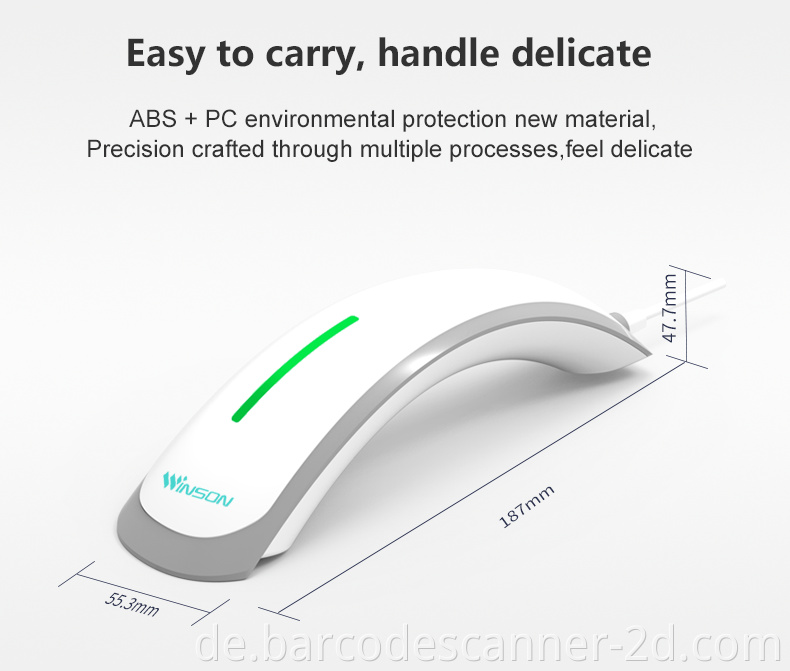

Dimensions	55.3mm47.7mm187mm(LWH)
Temperature	0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
Humidity	20 - 85% (operation) ) 20 - 90% (storage)
Shock Drop Test	1.5m drop onto concrete surface
